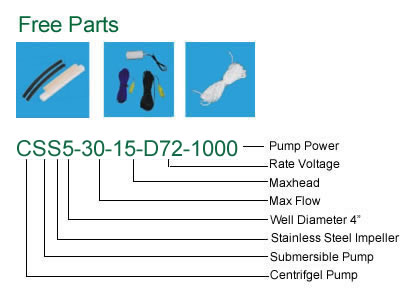

5inch Centrifugal Solar Power Submersible Pumps
Material of Parts
Outlet: 304 Stainless Stell Pump Body:304 Stainless Stell
Motor Body:304 Stainless Stell Bearing: NSK
Impeller: 304 Stainless Steel Screw: 316 Stainless Stell

Motor:

Full Oil Permanent Magenet Brushless DC Motor (Without Hall)
Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years
Performance Chart
Model Flow (m3/h) 0 5 10 15 20 25 30 35 36
CSS5-30-15-D72-1000 Head(m) 15 13 11 10 8 5 0
CSS5-36-18-D90-1350 18 17 14 12 10 8 6 2 1
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Outlet Outline
CSS5-30-15-D72-1000 1000W 72 VDC 46-100 VDC 30 m3/h 15 M 3 5 in
CSS5-36-18-D90-1350 1350W 90 VDC 45-120 VDC 36 m3/h 18 M 3 5 in

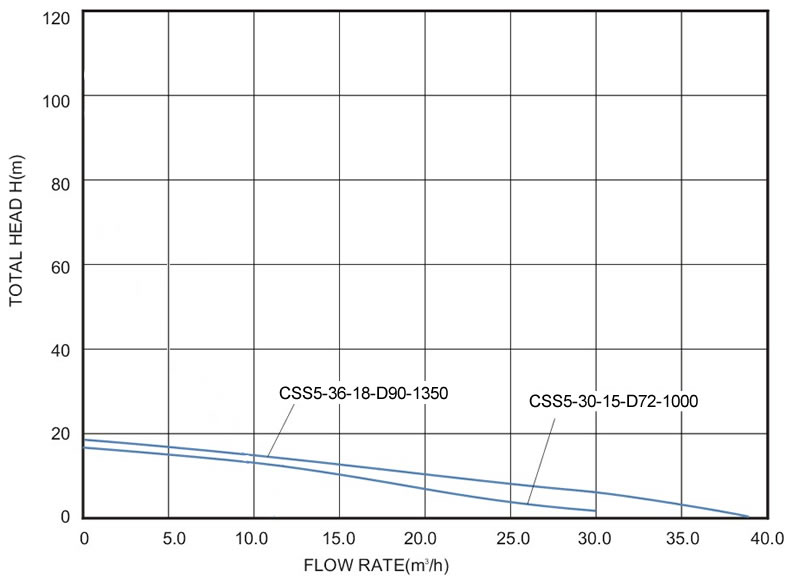

Curve
