Solar Water Pump System Supplier
Solar Power Vortex Pumps
Material of Parts
Outlet: 304 Stainless Stell Pump Body:304 Stainless Stell
Motor Body:304 Stainless Stell Bearing: NSK
Impeller: Brass Screw: 316 Stainless Stell

Motor:Permanent Magenet Brushless DC Motor (Without Hall)

Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years



Solar vortex pumps for applications that require small flow, high head of the occasion, and can convey highly volatile liquid containing gas vortex pump, small size, light weight characteristics has a great advantage in the ship means having the ability to self-absorption.



Because of use solar energy, when sunlight is available, the Solar controller matches maximum efficiency of solar power to the pump, the pump will continuously have to start working very economical, no cost.



Performance Chart
Model Flow (m3/h) 0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2
VP-2.0-25-D24-210 Head(m) 27 24 19 12 8 1.5
VP-2.2-35-D24-250 38 35 28 20 15 10 2.5
VP-3.0-60-D72-750 52 46 42 35 31 28 25 10 3
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Max Suct Intlet Outlet
VP-2.0-25-D24-210 210W 24 VDC 17-50 VDC 33 L/Min 25 M 8 M 1 in 1 in
VP-2.2-35-D24-250 250W 24 VDC 17-50 VDC 35 L/Min 35M 8 M 1 in 1 in
VP-3.0-60-D72-750 750 W 72 VDC 46-100 VDC 50 L/Min 60M 8 M 1 in 1 in

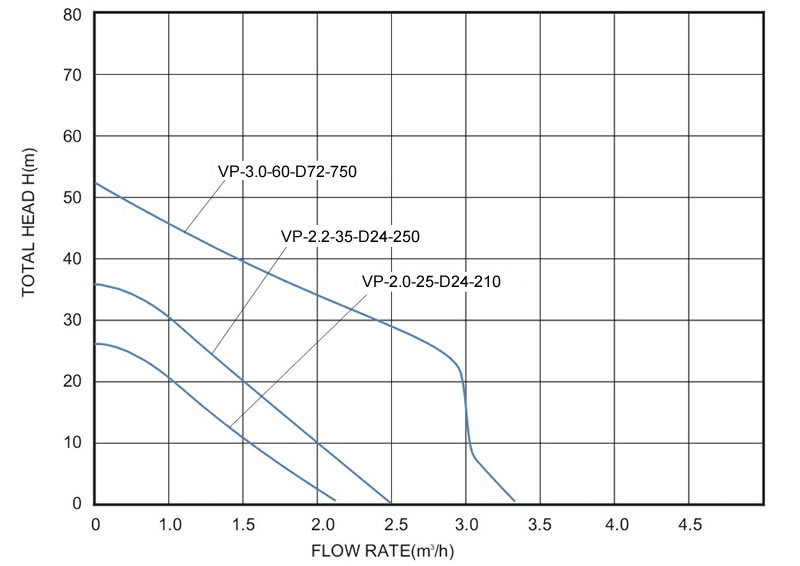

Curve
